Offline & USB Licensing

This guide walks a software vendor through every phase of licensing an air-gapped machine — from minting the first bundle in the admin portal, through physical USB handoff, to daily operation, in-place updates, and auditing.

Overview

Offline licensing lets you sell your software into environments where the end-user's machine has no internet — factory floors, hospital networks, military sites, research labs, remote installations. A customer receives a USB stick carrying a signed license bundle; the application reads that bundle, validates it locally, and runs for the window you authorised. No phone-home. No network dependency. Full enforcement and audit are preserved.

The flow has three physical artefacts and three portal actions:

• Outbound USB (.sglic) — a signed license bundle you generate in the portal and physically deliver to the customer.
• Optional update USB (.sgupd) — a standalone app-binary bundle you can ship between license exports when only the software has changed.
• Return USB (.sgsync) — a signed telemetry journal the customer exports from their offline machine and sends back.

Every one of the three is cryptographically sealed; edited files are refused on either side.

When to use it (and when not to)

Good fits. Factory/plant-floor machines, hospital imaging rooms, military/government systems, lab instruments, offshore rigs, secured research networks, retail branches with unreliable links, ATM-style devices, any customer whose IT policy forbids outbound traffic to a licensing server.

Poor fits. Consumer desktops with reliable internet — the online flow is simpler for both sides. A mixed fleet? Use online by default and generate an offline bundle only for the machines that need it; the two modes coexist on the same license.

Prerequisites

1. You are on a Professional or Enterprise plan (offline is disabled on Starter).
2. Your tenant has the Offline feature flag enabled. If you can see the “Offline” tab on the Licenses page, you're set. If not, contact support.
3. The license you want to take offline already exists in the portal. Issue it as you normally would — you don't need to do anything special at issue time.
4. The customer's offline machine has the SDK-wired version of your application installed. If it's a new install, see Step 3.
5. A clean USB stick (FAT32 or exFAT recommended). Size doesn't matter — a license bundle is typically under 1 KB; an embedded app binary pushes that to 20–100 MB.

Step 1 · Generate

Find the license

Log in to your admin portal and go to Licenses. Click the Offline tab.

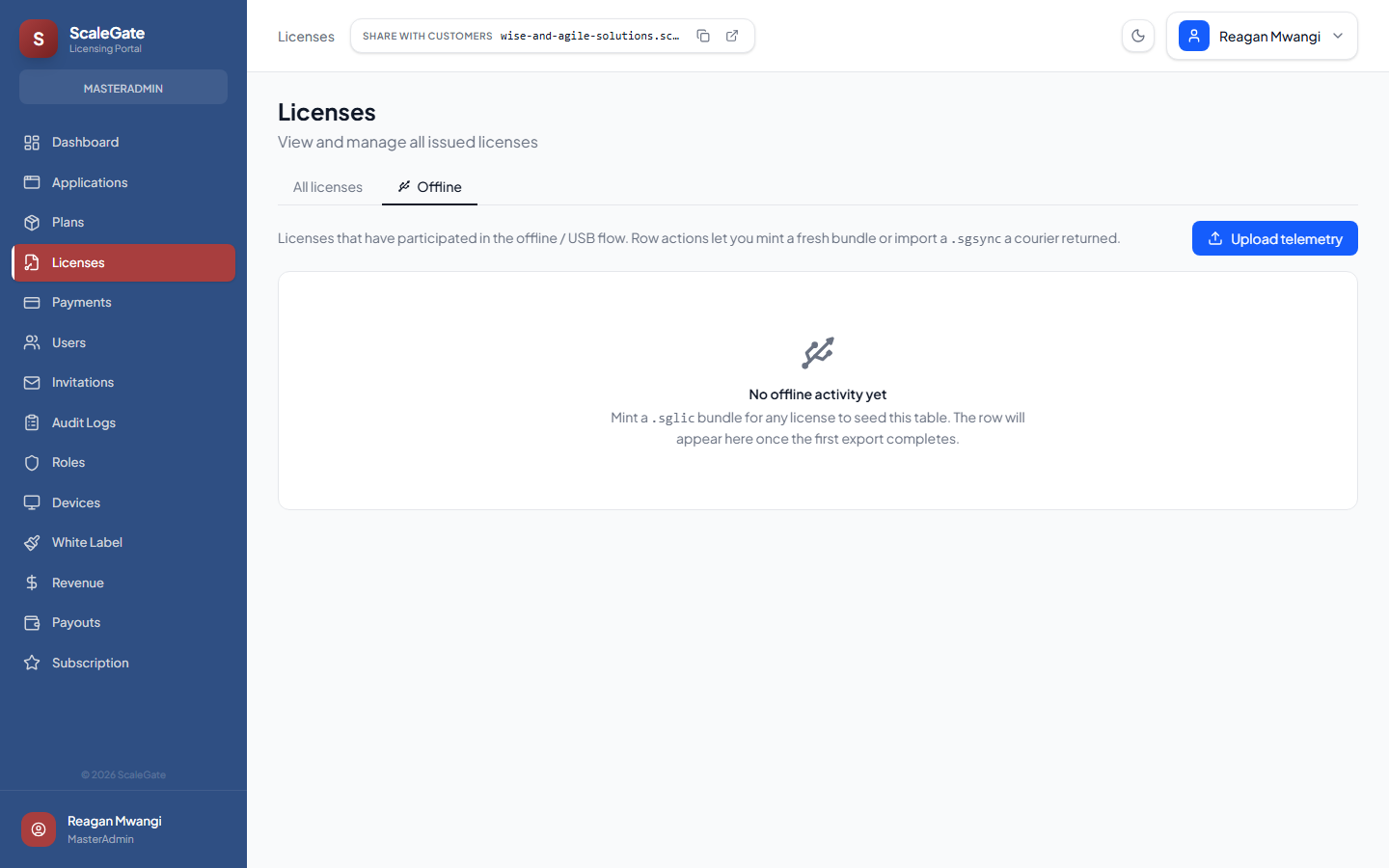

The first time you visit this tab, it's empty. Every license that has been exported or reconciled once will appear here afterwards.

The first time, the table is empty. Switch to All licenses, pick the one you want to take offline, and return to the Offline tab — after the first export, the license appears here with its offline status.

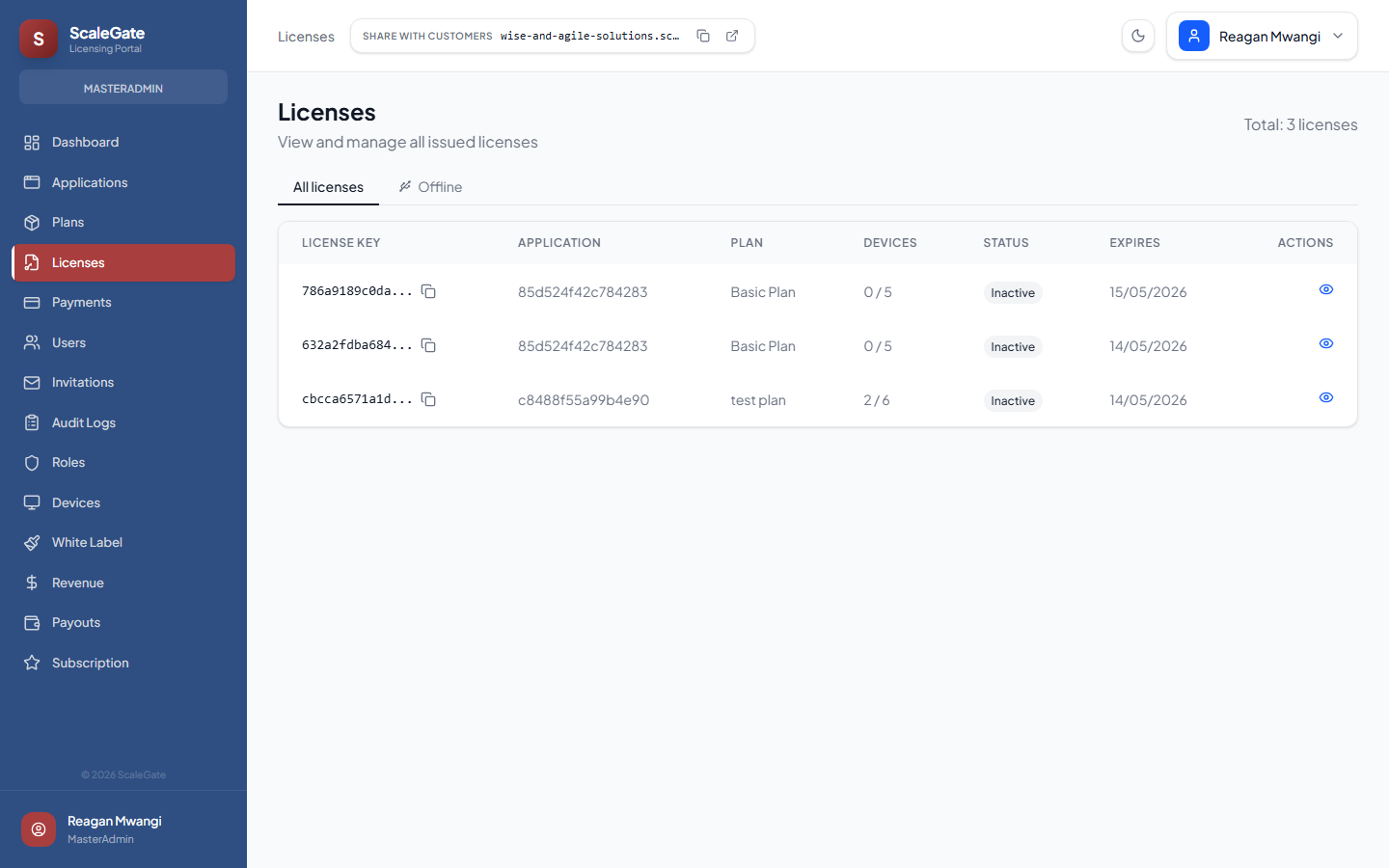

All licenses: pick the license you want to export. You can also open the wizard directly from this view's row actions.

Open the Generate USB bundle wizard

Click Generate USB bundle on the row. A three-step slide-in wizard opens.

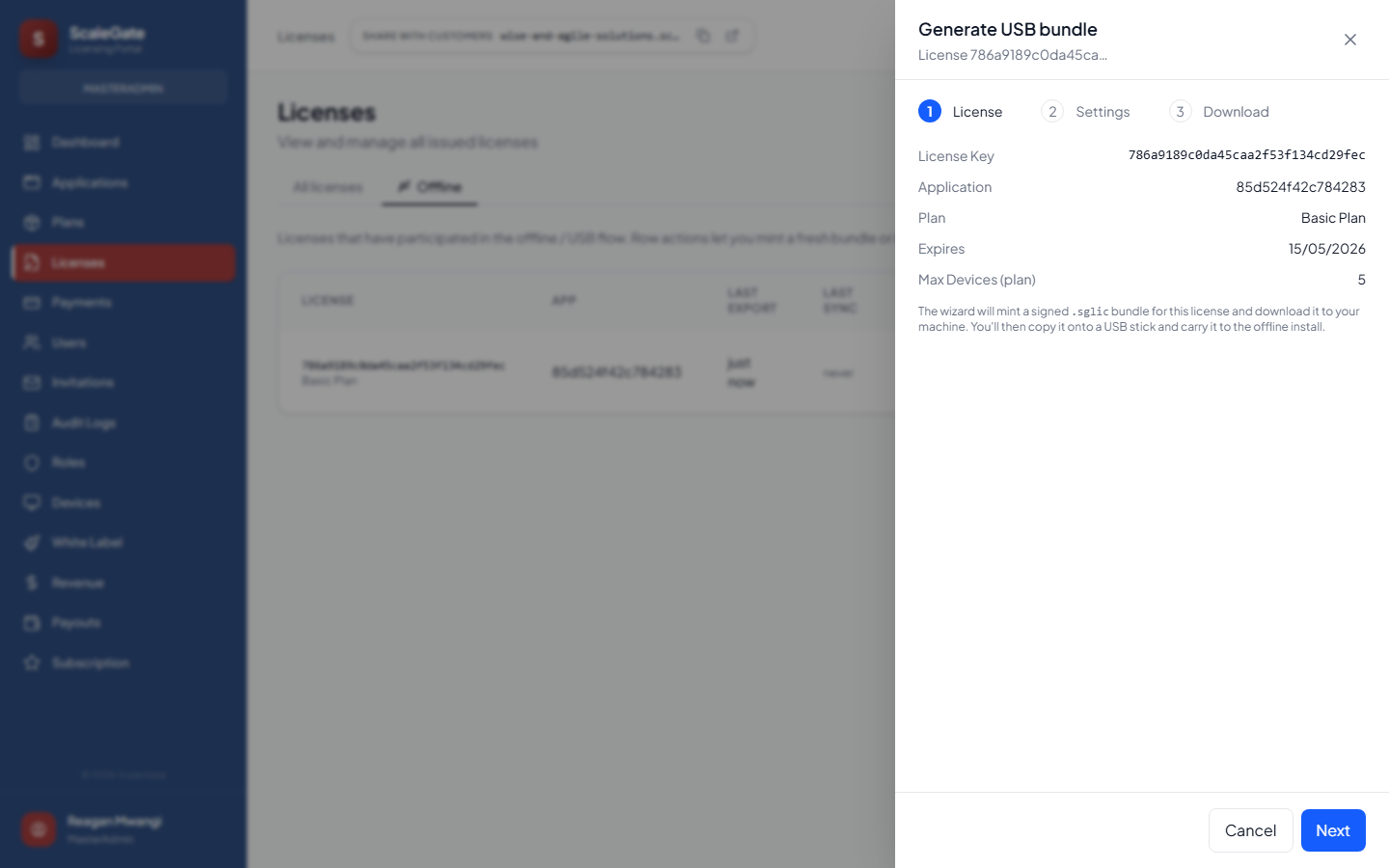

Step 1 — confirm you picked the right license. The summary shows the application, plan, expiry, and the plan's max-devices cap.

Configure the bundle

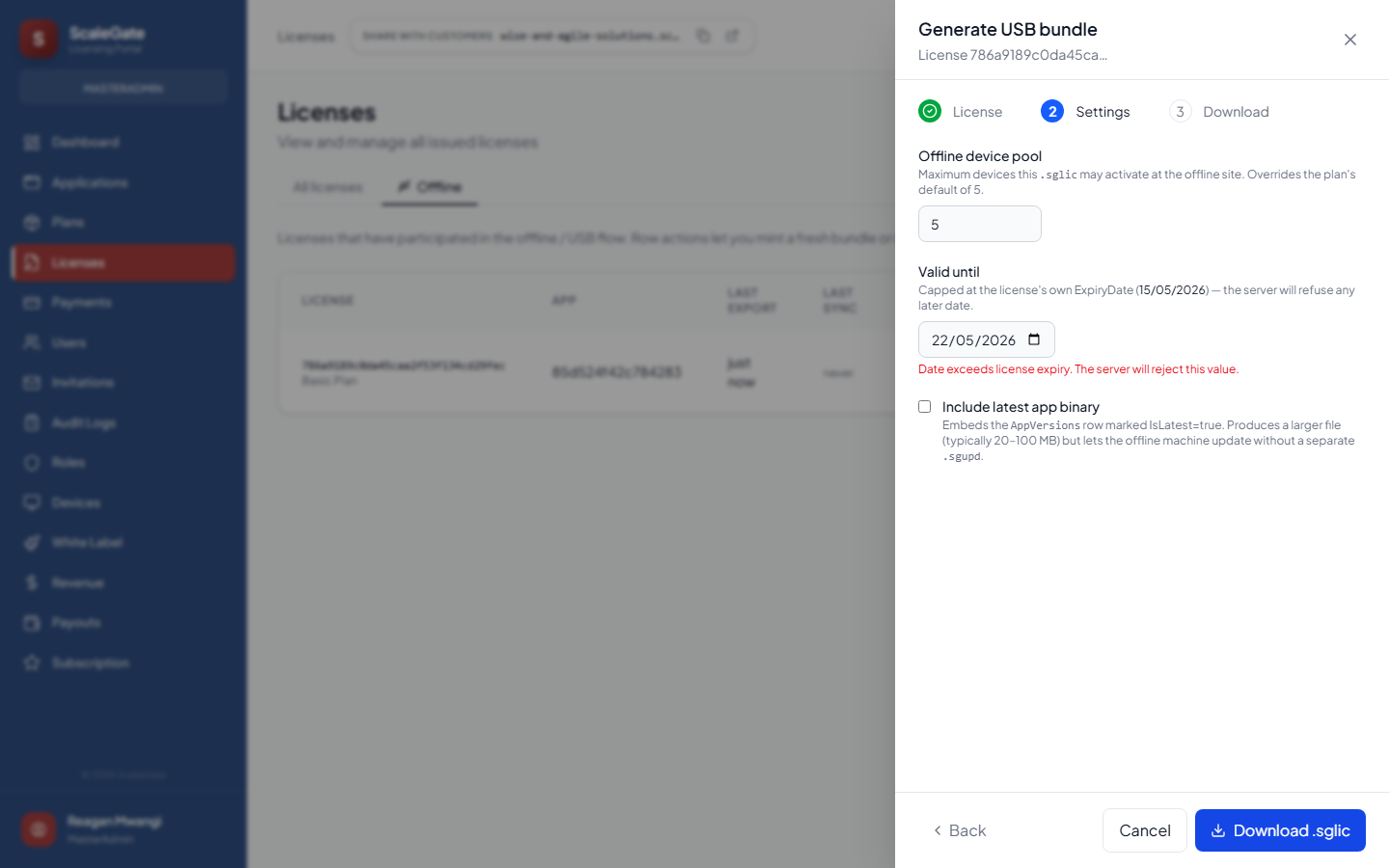

Step 2 — pick device pool, validity window, and (optionally) embed the latest app installer.

• Offline device pool. How many devices this single USB may activate at the customer site. Must be between 1 and the plan's MaxDevices; use a smaller value if you're carving out a sub-quota for a single site.
• Valid until. The hard expiry built into the bundle. If you type a date past the license's own expiry, the wizard warns you and the server refuses the export — a bundle can never outlive the license it came from.
• Include latest app binary. Check this to embed the current installer inside the .sglic. The customer machine can then install the app straight from the same USB — no prior install required. File size jumps to whatever the binary weighs (typically 20–100 MB).

Download the file

Click Download .sglic. Your browser saves a file named like license-786a9189.sglic. This is the signed bundle. You'll now see a row appear in the Offline tab with Last export = just now.

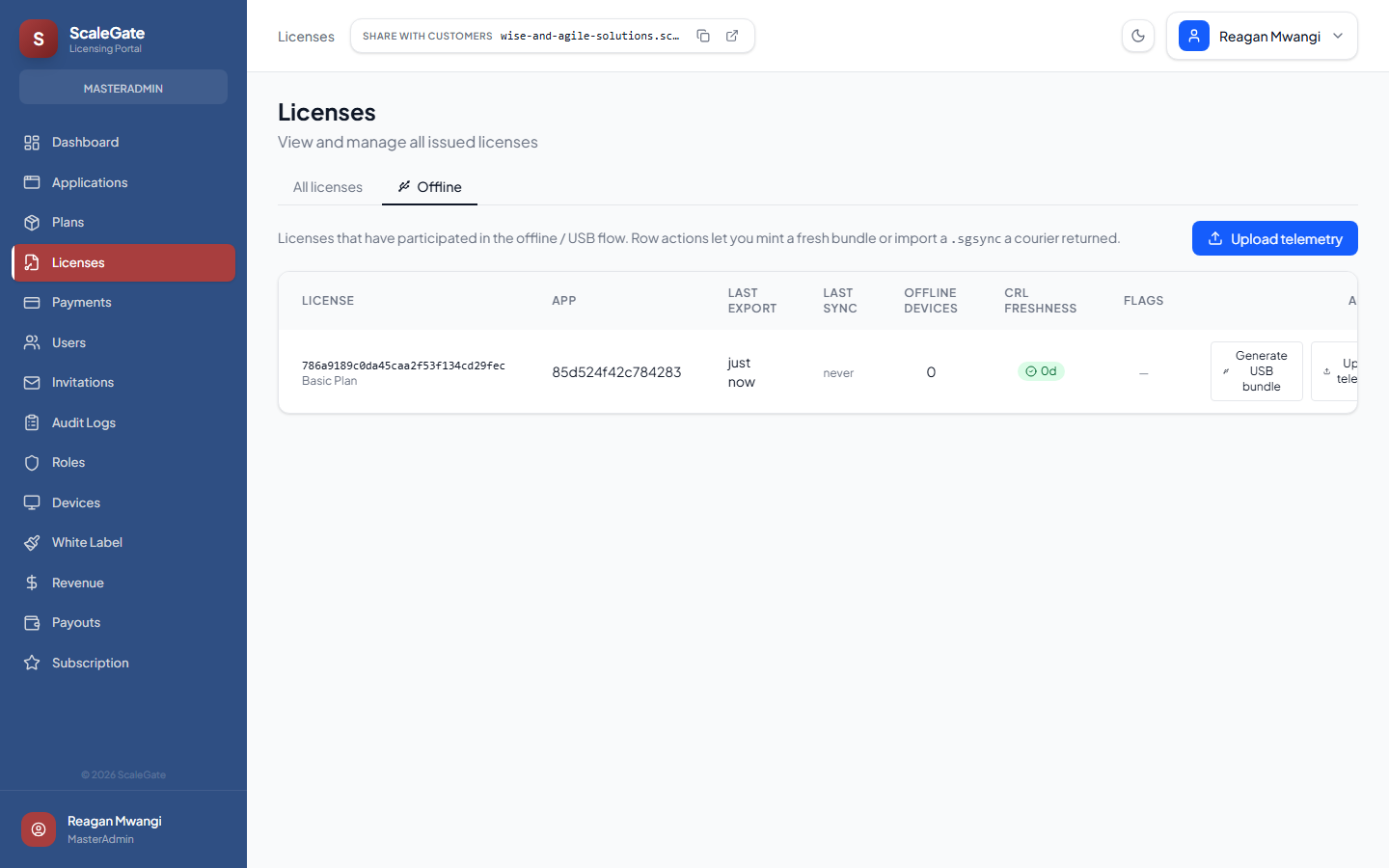

After export, the license appears in the Offline tab with its export/sync timestamps, device count, and CRL freshness.

Step 2 · Prepare

What the customer sees depends on whether you sent them one file or many. The simplest layout:

USB_ROOT/
  license-786a9189.sglic      ← the bundle you just downloaded
  README.txt                  ← your own instructions (optional)

If you embedded the app binary, the installer is inside the .sglic — the customer doesn't see it as a separate file. The application extracts it on first run.

Step 3 · Install

If the app is already installed

1. Insert the USB into the customer's machine.
2. Launch the application. On first run after USB insertion, it detects the .sglic and presents an activation dialog.
3. Confirm the expiry and device count shown. If they match what was agreed, click Activate.
4. The USB can be removed once activation succeeds — the bundle is now recorded on the machine's local state store. The USB is only needed again for refresh/update.

If it's a fresh install (embedded binary)

1. Insert the USB.
2. The customer's IT opens the .sglic with your setup utility (or double-clicks if you wired the file extension association).
3. The utility extracts the embedded installer, runs it, and activates the license in one step.
4. Remove the USB and store it somewhere safe — it's still the only way to refresh or extend the license later.

Step 4 · Operate

What happens on every launch

When the application starts, the SDK:

1. Reads its local state. Last-known bundle, last-seen time, device fingerprint, journal of recent events.
2. Validates the signature. If the on-disk bundle has been modified, the app refuses to run.
3. Checks time. If the system clock has been set backwards since the last launch, the app refuses to validate — clock rollback attacks are detected here.
4. Checks the expiry window. Refuses to run past the bundle's ValidUntil, regardless of clock.
5. Checks device allowance. If this machine's fingerprint isn't in the bundle's device list, and the pool is full, activation is rejected.
6. Checks the revocation list. If this license key appears on the CRL baked into the bundle, the app refuses to validate even if everything else matches.
7. Appends to the journal. Activation, validation, startup, and expiry checks are all recorded in an encrypted local file — the telemetry outbox.

Degraded states the user sees

• Approaching expiry. With < 7 days left the app shows a banner asking the customer to request a new USB bundle. Adjustable in the SDK config.
• CRL is getting stale. If the bundle's embedded revocation list is older than 14 days, the SDK degrades validation to “needs refresh” — a new bundle is required soon even if the expiry hasn't hit yet. This prevents an indefinitely-held bundle from missing a key compromise.
• Hard expiry. Past ValidUntil the app stops validating. The UX is up to you: lock to a read-only mode, hard-exit, or show a “renew via USB” dialog.

Step 5 · Update

You have two ways to push an updated application binary to an offline machine, depending on whether the license is also being refreshed.

Option A — Bundle the update with a license refresh (.sglic)

When a license expires (monthly, quarterly, whatever cadence you chose), you're already going to issue a fresh .sglic. In Step 2 of the wizard, tick Include latest app binary. The refreshed bundle carries the new license and the new installer. The customer inserts the USB, the SDK detects the newer binary, prompts to install, and continues. One USB, two jobs done.

Option B — Ship a binary-only drop (.sgupd)

When you need to push a patch between license refreshes — a critical bug-fix, a new feature, a security hotfix — the license is still valid and doesn't need re-issuing. Use the Export Update action (also on the Offline tab row, or in the Applications page) to mint a standalone .sgupd. This file contains only the app binary, signed by the same trust chain as .sglic. The customer drops the USB in; the SDK extracts, verifies, installs the new binary, and resumes with the existing license.

Step 6 · Collect

A license bundle going out is only half the job. To keep the audit trail intact and catch over-activation, the customer periodically exports a return journal and sends it back. This is the telemetry outbox signed as a .sgsync file.

What the customer does

1. Insert a return USB into the offline machine.
2. From the application's Help → Export licence journal menu (or the CLI command your install docs document), save journal-YYYYMMDD.sgsync to the USB.
3. Hand the USB to the courier / admin / mail run.

What it contains

• Every activation, validation, startup, and renewal event since the last collection.
• Device fingerprints and their first-seen / last-seen timestamps.
• The device's own signing public key (registered the first time it syncs; re-used thereafter).
• The outbox's own signature, produced by the device's private key — the customer cannot hand-edit this file to conceal over-use.

Step 7 · Reconcile

Back in the portal, on the Licenses → Offline tab, click Upload telemetry in the top-right.

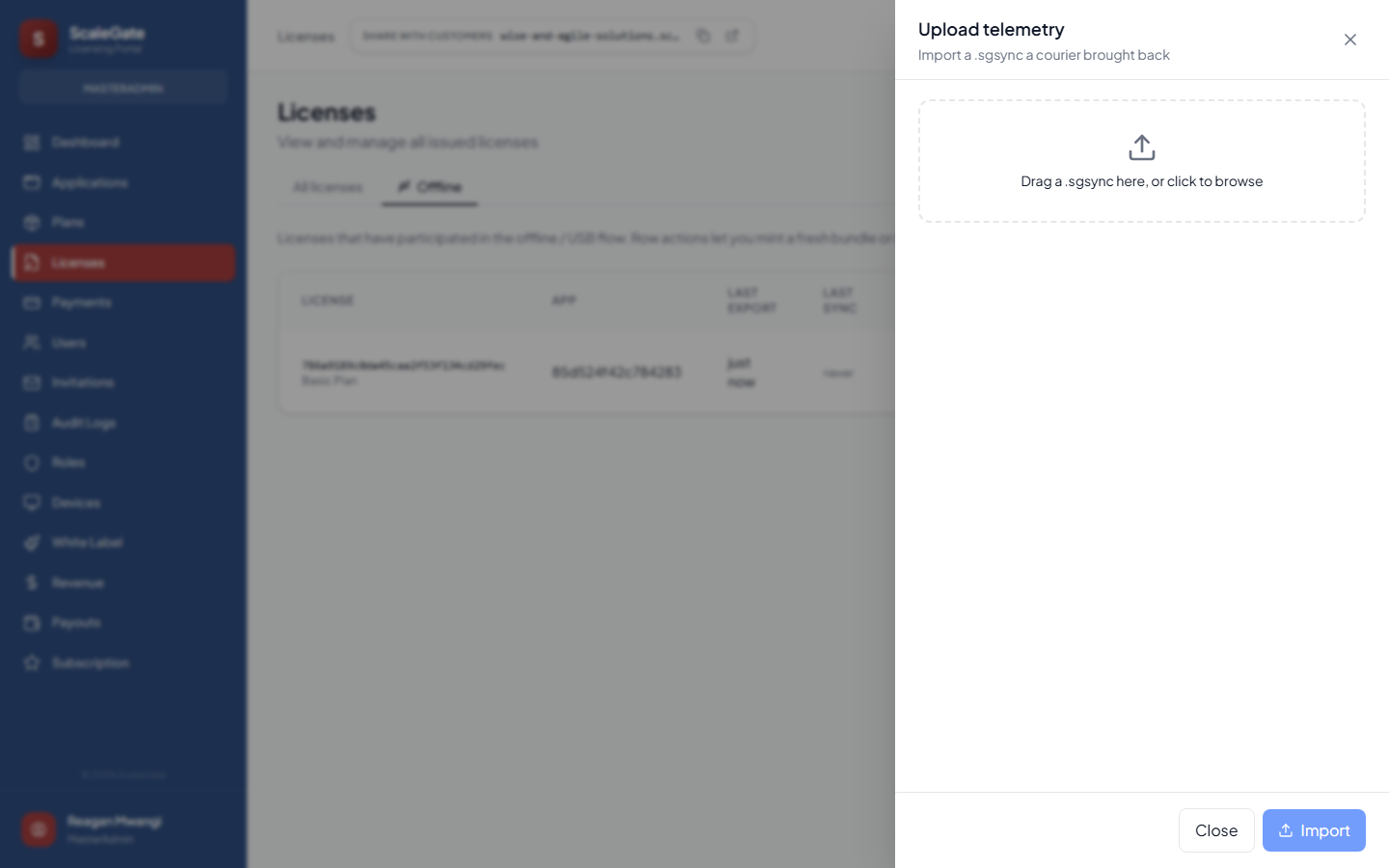

Drag the .sgsync the courier returned, or click to browse. The panel enforces a 16 MB cap client-side.

Drag the .sgsync onto the drop zone, or click to browse. The server verifies the signature, deduplicates events against what it's already seen, and produces a reconcile report.

The reconcile report

• Accepted — new events imported this round.
• Duplicates — events already in the database (harmless; just means the customer is sending overlapping files).
• Rejected — events rejected, usually because their timestamp is more than 1 hour in the future (forged or catastrophically clock-skewed).
• Devices created / updated — new fingerprints recorded in the device registry.
• Over-activation — the one to watch. If a 5-device pool saw 7 activations, this is flagged and the license row in the Offline tab gets an amber warning badge.

File types at a glance

Audit & flags

Every offline action surfaces in the same audit log as the rest of your tenant, with three dedicated actions:

• OfflineBundleExported — a .sglic or .sgupd was minted.
• OfflineSyncImported — a .sgsync was successfully reconciled.
• OfflineOverActivation — the reconcile found a device that activated past the bundle's cap.

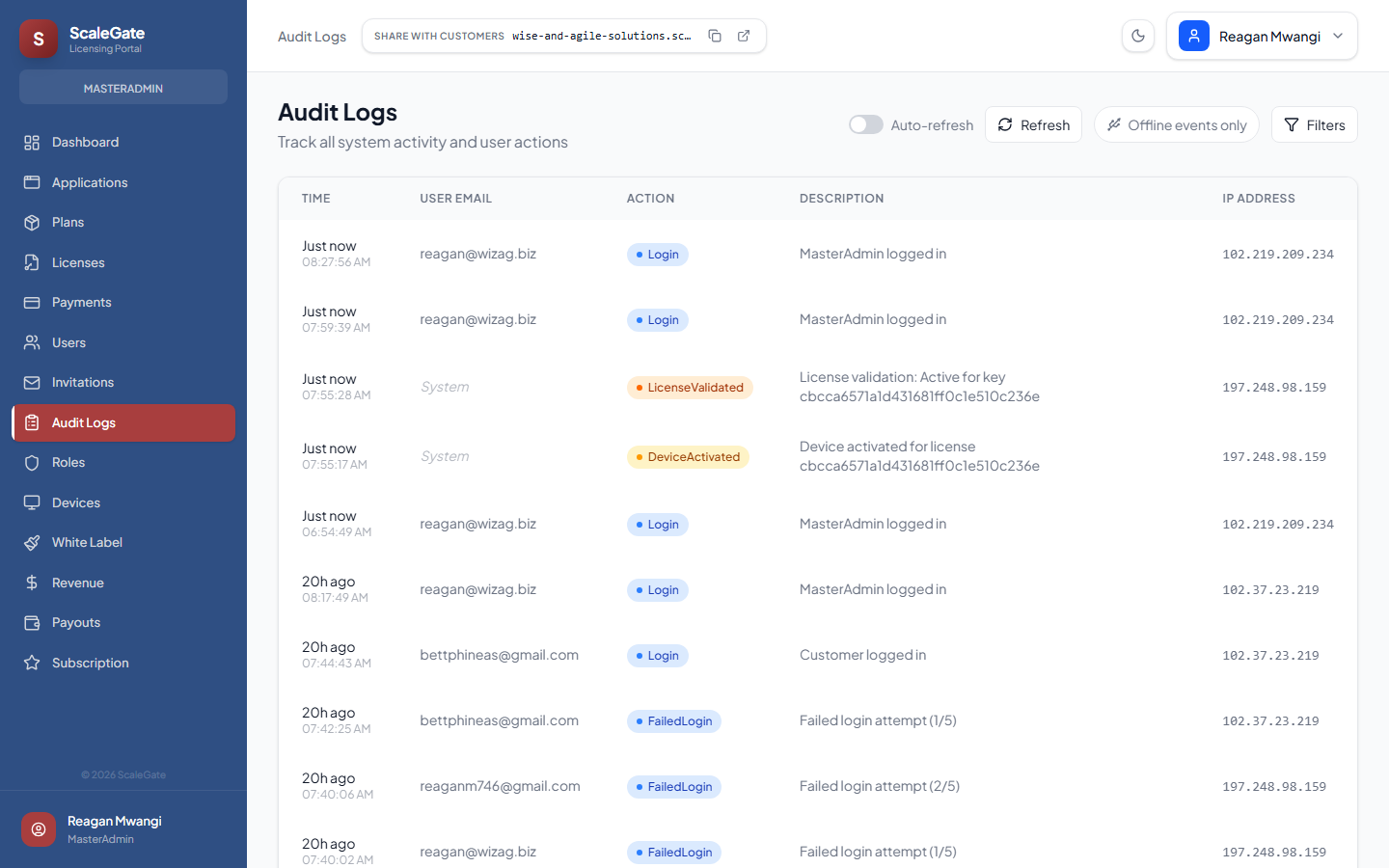

The regular Audit Logs page. Use the “Offline events only” chip filter to narrow to just the three offline actions.

Troubleshooting

“Date exceeds license expiry” when generating

You asked for a ValidUntil later than the license's own ExpiryDate. Fix: pick a date on or before the license expiry, or renew the license first and retry.

“No valid offline bundle” on the customer machine

One of:

• The .sglic file was moved out of the path the SDK searches (by default: next to the executable, or a configured directory).
• The file was modified in transit (AV scanning rewriting contents, corrupted upload, etc.). Re-generate and re-send.
• The bundle expired. Re-generate with a new window.
• The tenant's signing-key set in the SDK doesn't include your trust anchor. Check the SDK config with site IT.

Reconcile shows “rejected” events

The events' OccurredAt is more than 1 hour in the future. Either the offline machine's clock is badly wrong, or someone forged the file. The event body is logged — check the customer's system clock first before suspecting foul play.

Import upload is refused

Three checks:

• File is exactly one .sgsync, not a zip.
• File is under 16 MB.
• Signature is intact — if the customer opened and re-saved the file in a text editor, the signature is broken and the server will reject it.

USB was lost in transit

Immediately revoke the original license key via the Licenses page (standard revoke flow — nothing offline-specific). Any future bundle you export will carry the revocation in its CRL; the lost USB will be blocked by the app itself on the next launch attempt at the destination. Then re-issue with a short window.
